Description

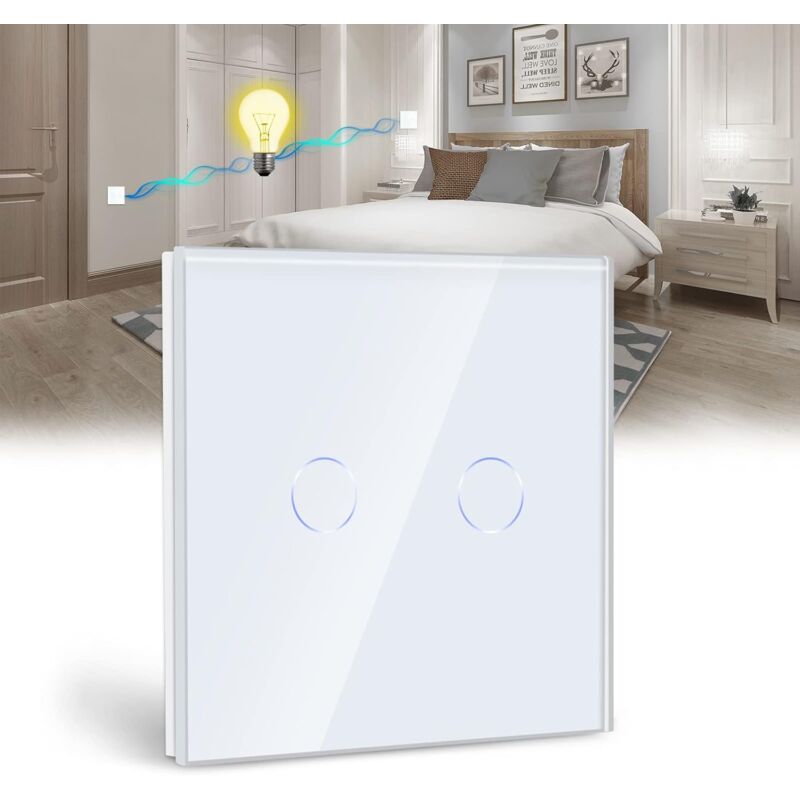

General description The two-way touch switch features a sleek white design with a crystal glass panel and an LED indicator. It allows for convenient control of lighting from two different locations, making it ideal for staircases, bedrooms, and other areas in your home. The switch operates without a neutral wire, ensuring easy installation. Technical specifications Input Voltage: 100-240 VAC, 50/60 Hz Output Power: 5-300W/single output Compatible Light Bulbs: 5W – 800W (incandescent, fluorescent, ordinary LED, energy-saving) Touch Life: 100,000 times Working Environment Temperature: up to 55 degrees Celsius Display Color: Red (on), Blue (off) Panel Material: Tempered glass Shell Material: PC bottom + flame retardant ABS Panel Color: White Installation Ensure power is off before installation. Wiring instructions: Connect to the 1-way terminal “L 1”, 2-way terminal “L 2”, and 3-way terminal “L 3”. The positions “L1”, “L2”, and “L3” refer to lamp control. Usage Can control a light from
